long and accurate service for many industrial uses. |
| |
|
These unique, compact and rugged mechanical force measuring tools
utilize sensing diaphragm. Certified calibration curves are
available. |
| |
You
also get:
-
Accuracy...within
1% of full scale
-
Overload
Protection...with internal bottom-out
-
Low
deflection...total vertical deflection is only .008"
of its full range
-
Unitized
construction...for ease of application and permanent
installation.
-
Long,
virtually maintenance-free life...All moving parts are
completely enclosed and protected, which reduces chances of
environment contamination or tampering. Slides, pivots or
springs that wear are not used. No routine cleaning or
adjusting is needed.
-
Easy-reading
dial...with bold numbers, increments of 1% of scale. For
greater resolution, 1/2% of scale increments are available.
-
Versatility...for
use in any position. Threaded trunnions available for direct
mounting of fittings or tools to the cell.
|
|
Use
for:
-
Measuring
die closing force requirements.
-
Measuring
force required for press-fit assemblies.
-
Measuring
force in strength test. (Rivet or clenched joints press fits,
etc.)
-
Applying
known loads to machine structures for deflection measurements.
-
Applying
known load to materials to determine deformation.
-
Measuring
liquid level tanks.
-
Performing
weighing operations in lift cranes and hoists.
-
Measuring
cable tension.
-
Measuring
clamping pressure in rubber molds, etc.
|
| |

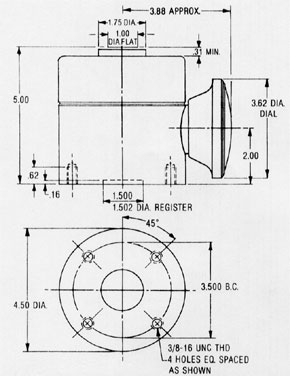

| SERIES
5000 |
 |
|
| Model |
Range-lbs. |
Increments-lbs. |
|
| 5500 |
2,500
- 50,000 |
500 |
|
| |
| SPECIFICATIONS |
|
|
Accuracy: |
1% of Full Scale |
|
Deflection: |
.008" Full
Scale |
|
Maximum Load: |
250,000 lbs. |
| |
| OPTIONS |
|
| 1.
1"-14 threaded trunnion in place of load button. |
| 2.
Certified calibration curve. |
| 3.
Special mountings and ranges. |
| 4.
1/2% scale requirements. |
|
| |

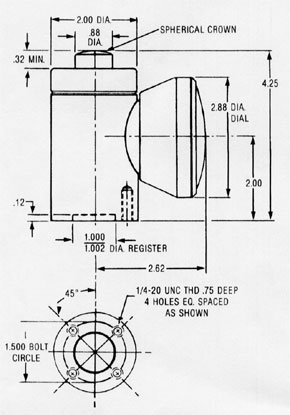

| SERIES
8000 |
 |
|
| Model |
Range-lbs. |
Increments-lbs. |
|
| 8002 |
10
- 250 |
2 |
| 8005 |
25
- 500 |
5 |
| 8010 |
50
- 1,000 |
10 |
| 8025 |
125
- 2,500 |
25 |
| 8050 |
250
- 5,000 |
50 |
|
| |
| SPECIFICATIONS |
|
|
Accuracy: |
1% of Full Scale |
|
Deflection: |
.008" Full
Scale |
|
Maximum Load: |
12,000 lbs. |
| |
| OPTIONS |
|
| 1.
Large 3-5/8" diameter dial available |
| 2.
3/4"-16 threaded trunnion in place of load button. |
| 3.
Certified calibration curve. |
| 4.
Special mountings and ranges. |
| 5.
Metric or Newton's calibrations. |
|
| |

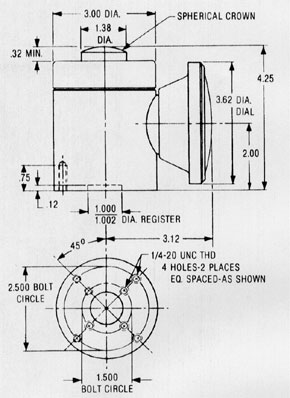

| SERIES
9000 |
 |
|
| Model |
Range-lbs. |
Increments-lbs. |
|
| 9050 |
250
- 5,000 |
50 |
| 9100 |
500
- 10,000 |
100 |
| 9150 |
750
- 15,000 |
150 |
| 9250 |
1,250
- 25,000 |
250 |
|
| |
| SPECIFICATIONS |
|
|
Accuracy: |
1% of Full Scale |
|
Deflection: |
.008" Full
Scale |
|
Maximum Load: |
30,000 lbs. |
| |
| OPTIONS |
|
| 1.
3/4"-16 threaded trunnion in place of load button. |
| 2.
Certified calibration curve. |
| 3.
Special mountings and ranges. |
| 4.
Metric or Newton's calibrations. |
|
|
|
