| You
can now order spacers from Force Controls! |
| |
|
|

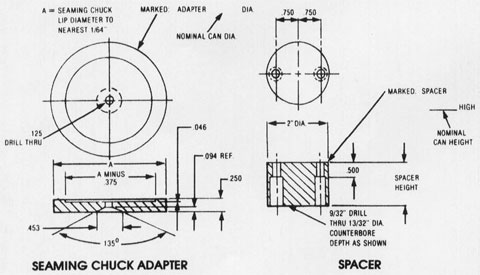

In order to use the Force Gage in a canning seamer, a Seaming
Chuck Adaptor and Spacer is required. The Seaming Chuck Adaptor and Spacer
allows the Force Gage to fit in the Seamer in such a way that the
three together simulates a can of the same diameter and length.
Determining the length of spacer to order is easy. Just take the
height of the can size that you are using and subtract 3 inches
for the models 1050CS and 1060CS. Subtract 4.25 inches for the models
8050CS and 8060CS.
The remainder is the height of the spacer to order. |
|
Determining the "A" dimension which is needed to order a
Seaming Chuck Adaptor is just as easy. The "A" dimension
is the same as the diameter of the lid being used. Cans are normally
referred to as a 401 X 504 or a 603 X 510, etc. This means that in
the first example, the diameter is 4 inches plus 1/16 inches. The
length is 5 inches plus 4/16 or 1/4 inches/ The first number is
inches and the last two numbers are the number of 1/16's of an
inch to add to the first. This is a standard in the canning
industry. This will assist you in determining the "A"
dimension and spacer height without having to measure the
can. |
| |
| Delivery is
from stock. |
Remember!
Include the spacer height and the "A" dimension
with your purchase order when ordering and a pair of
each the Seaming Chuck Adaptor and Spacer is required for
each can used. |
| Spacer |
$50.00 |
| Seaming Chuck Adaptor 3.0" diameter and greater |
$100.00 |
| Seaming Chuck
Adaptor |
$75.00 |
| |
|
|
|
 |
|
|
|
| |
| MODEL
1050CS |
MODEL
8050CS |
|
|
 |
 |
|
Click
to Zoom |
Click
to Zoom |
| |
| *Range: |
25-600
lbs./10-270 Kgs. |
*Range: |
25-600
lbs./10-270 Kgs. |
| Increment
Value: |
5 lbs. Each |
Increment
Value: |
5 lbs. Each |
| Overload
Capacity: |
1200 lbs. |
Overload
Capacity: |
1200 lbs. |
| Accuracy: |
1% Full Scale |
Accuracy: |
1% Full Scale |
| Approx.
Weight: |
3 lbs. |
Approx.
Weight: |
3 lbs. |
| Vertical
Deflection: |
.010" Full
Range |
Vertical
Deflection: |
.010" Full
Range |
| |
| |
*Other
ranges available by special request. |
|
|
